2026 New 10-Inch Tuya System Smart Home Control Panel Built-In Zigbee Gateway and Alexa Building Intercom Compatible

2026 New 10-Inch Tuya System Smart Home Control Panel Built-In Zigbee Gateway and Alexa Building Intercom Compatible is a multifunctional embedded control panel designed for indoor smart home and intelligent building applications. It combines device control, interconnection, entertainment, security functions, gateway capabilities, scene control, video interconnection, music playback, and multiple interaction methods including physical buttons, touchscreen control, and voice control.

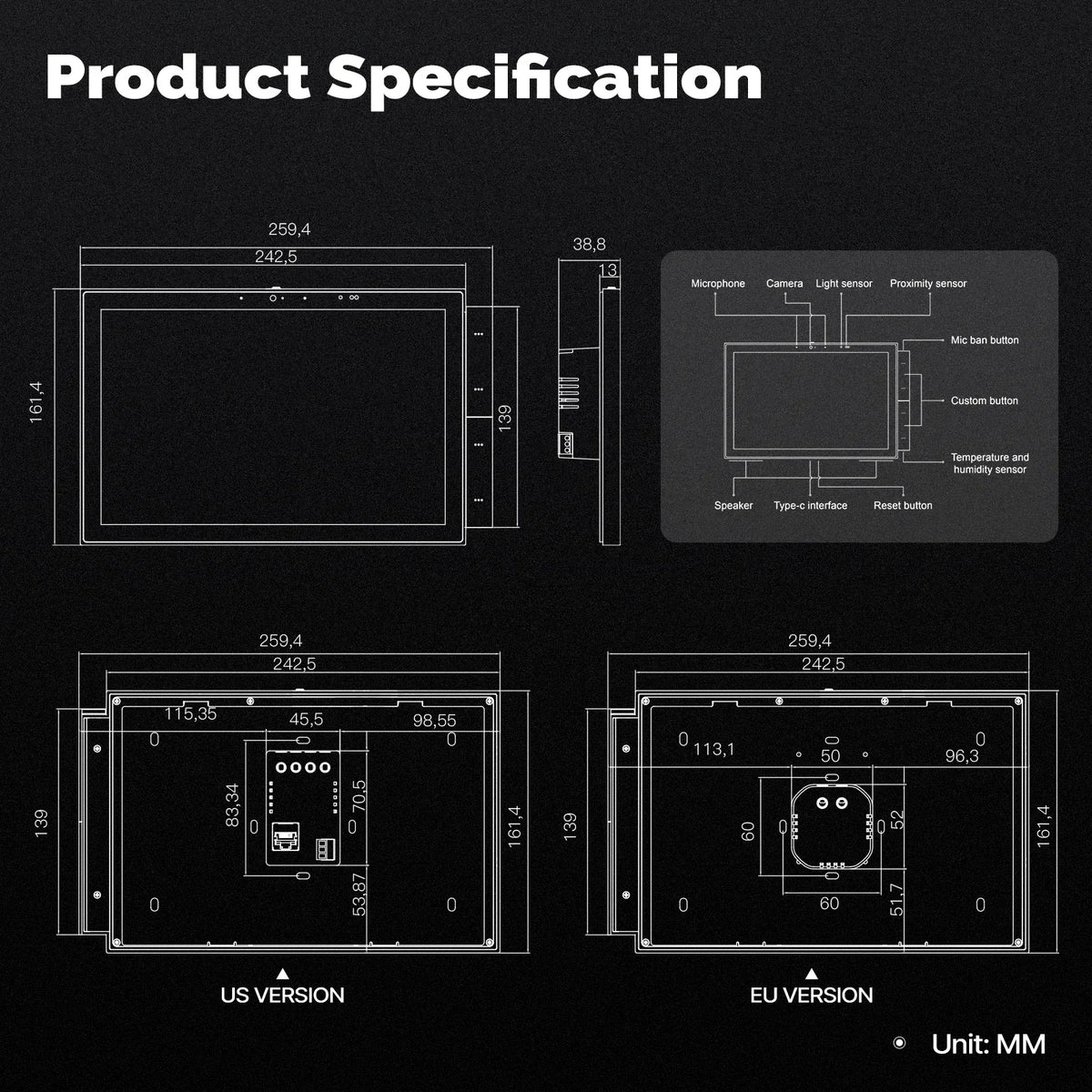

Specifications

• Type: Embedded Computer

• CPU: Quad-core high-performance processor

• Screen Size: 10.1 Inches

• Resolution: 1920 × 1200

• Memory: 2G RAM + 8G ROM

• Microphone: 2 Microphone

• Speaker: 2 × 1.8W

• Protocols: Wi-Fi, Bluetooth, Zigbee, 485

• Interface: 220V Neutral wire, 12V DC

• Sensing: Proximity sensing, temperature and humidity sensing, light sensing

• Voice Control: Built-in Alexa

• Battery Included: No

Features

• Integrates smart device control, interconnection, entertainment, and security functions into one central panel.

• Supports control through physical buttons, touchscreen interaction, and voice interaction.

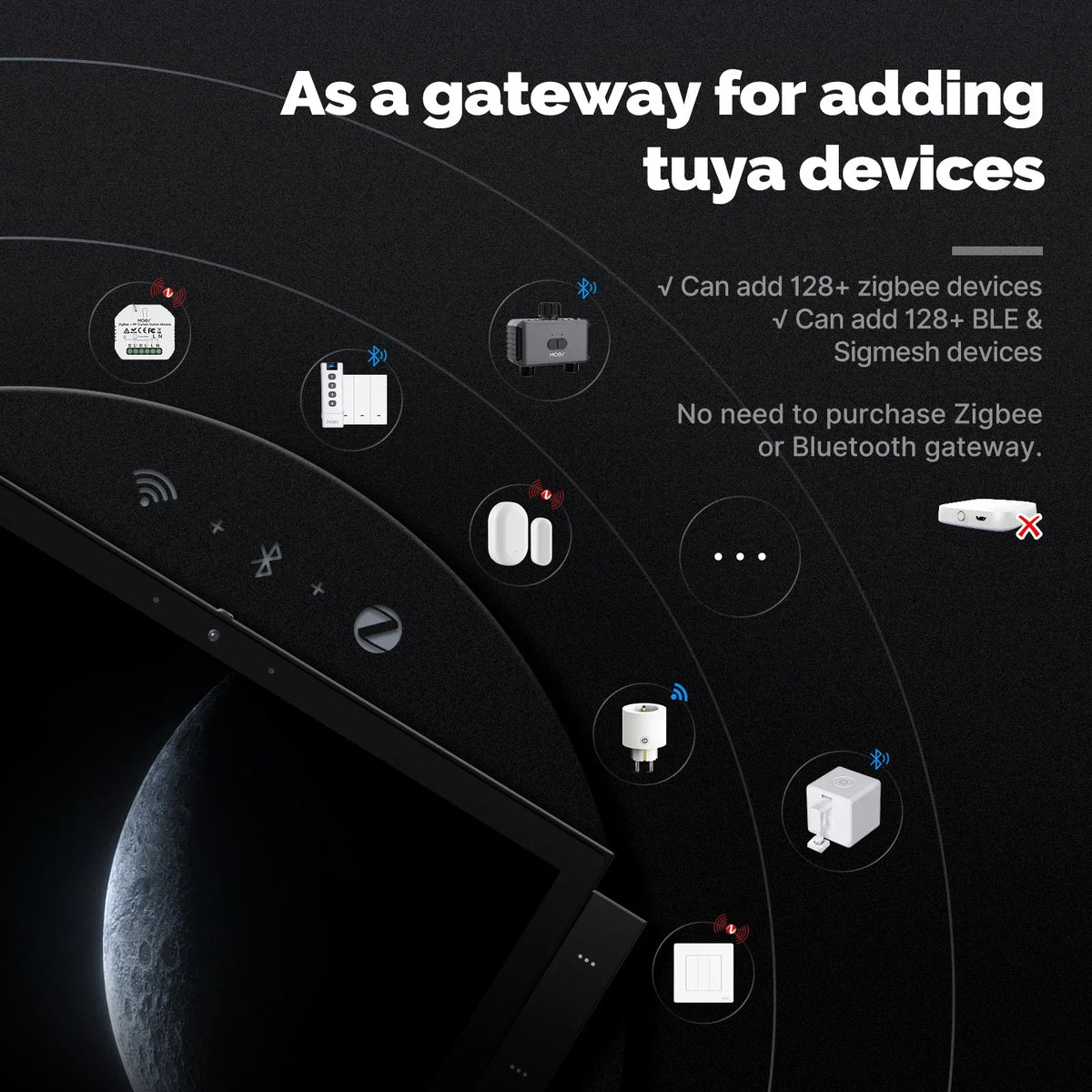

• Integrated Zigbee and Bluetooth gateway functions support Bluetooth BLE and BLE Mesh sub-devices.

• Supports localized smart device control through independent Zigbee and Bluetooth chips.

• Compatible with multiple smart device forms and supports centralized device management.

• Custom physical buttons, touchscreen interaction, and voice commands can trigger configured scenes.

• Supports IPC preview monitoring, video calls, voice calls, and interconnection between compatible control panels and applications.

• Includes 4 customizable physical buttons for associated devices and scene controls.

• Shortcut control panel allows multiple commonly used device controls to be accessed from one screen.

• Supports dual relays, RJ45 network connection, RS485, and multiple base configurations.

• Built-in building intercom interface supports compatible video intercom, elevator control, access control, and property information systems.

Installation

• Supports standard 86 in-wall base installation or desktop base installation.

• Can be mounted to the wall using the included wall bracket.

• Power can be supplied through live and neutral wire wiring or Type-C connection.

• Available base configurations include US standard bottom box, European standard bottom box, and Asian standard bottom box.

Available Models

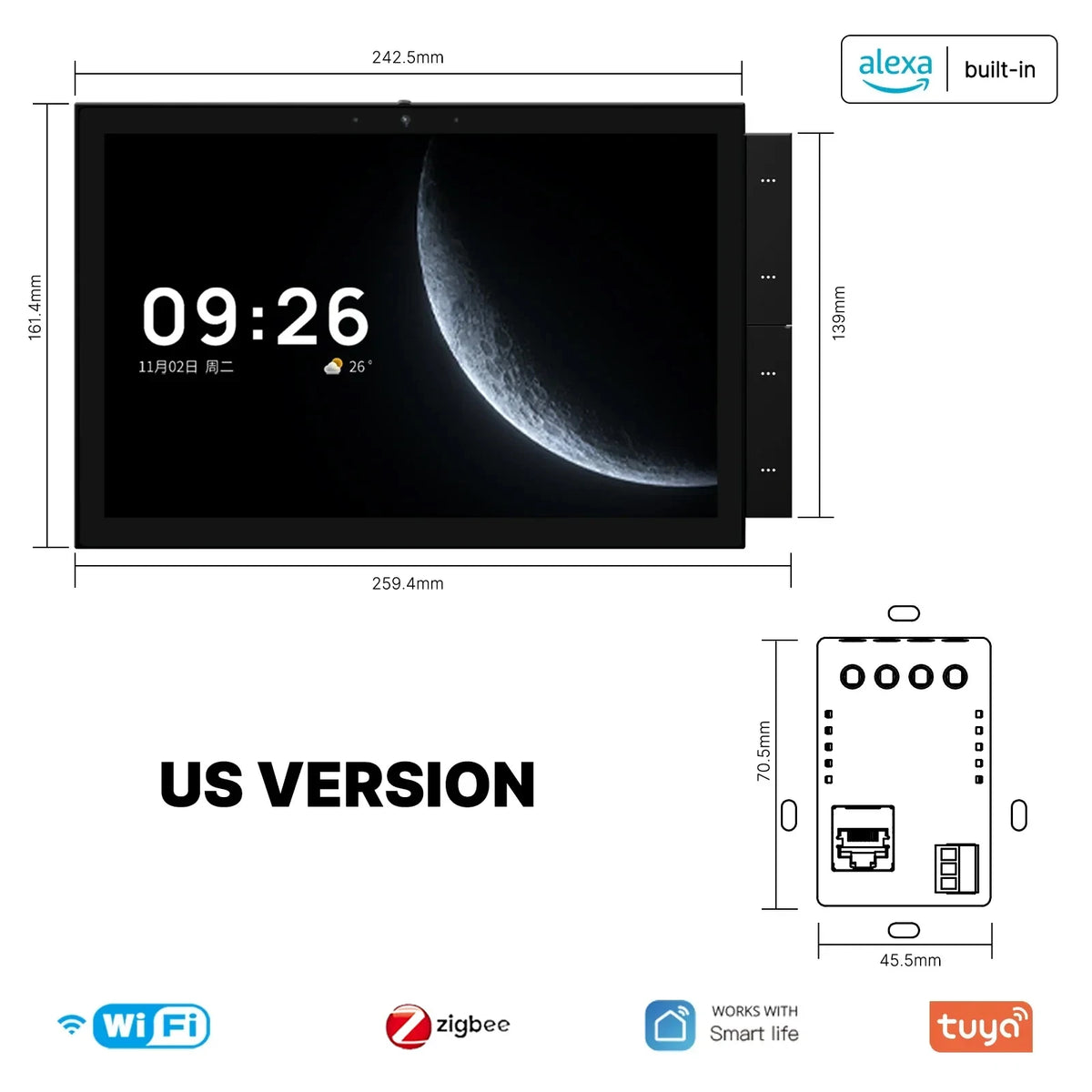

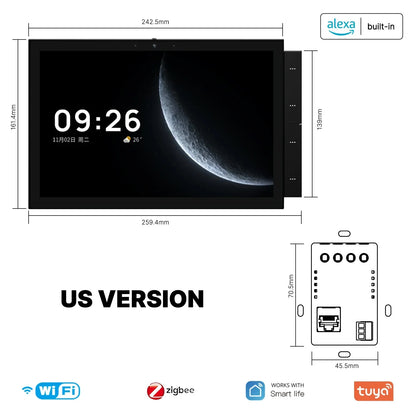

• US Model: US standard bottom box

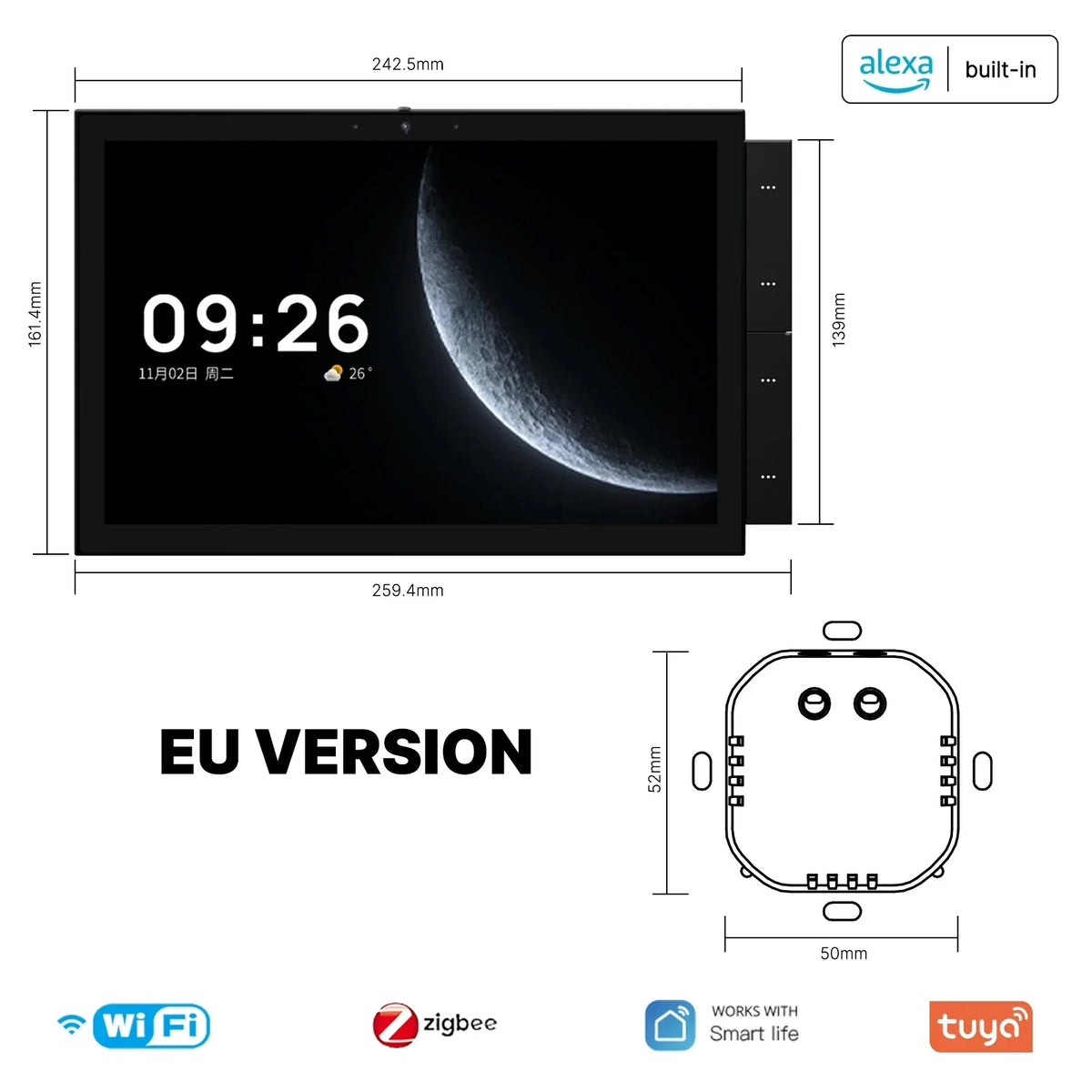

• EU Model: European standard bottom box

• AS Model: Asian standard bottom box

What's in the Box

• 1 Smart central control screen MAX

• 1 Wall bracket

• 1 In-wall base box for strong electricity, optional

• 1 Weak current in-wall base box, optional

• 1 Screw bag

• 1 Reset pin

• 1 Product manual
